10-Pack MOSFET DC Motor Controller Module, 5V-36V 15A 400W | Dual high-power PWM trigger switch, supports 0-20kHz PWM signals, for LED and motor speed control
US$4.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by world-nail-association.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$4.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by world-nail-association.com
Free 30-day returns Details
Product details
| Management number | 247179517 | Release Date | 2026/08/16 | List Price | US$4.80 | Model Number | 247179517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

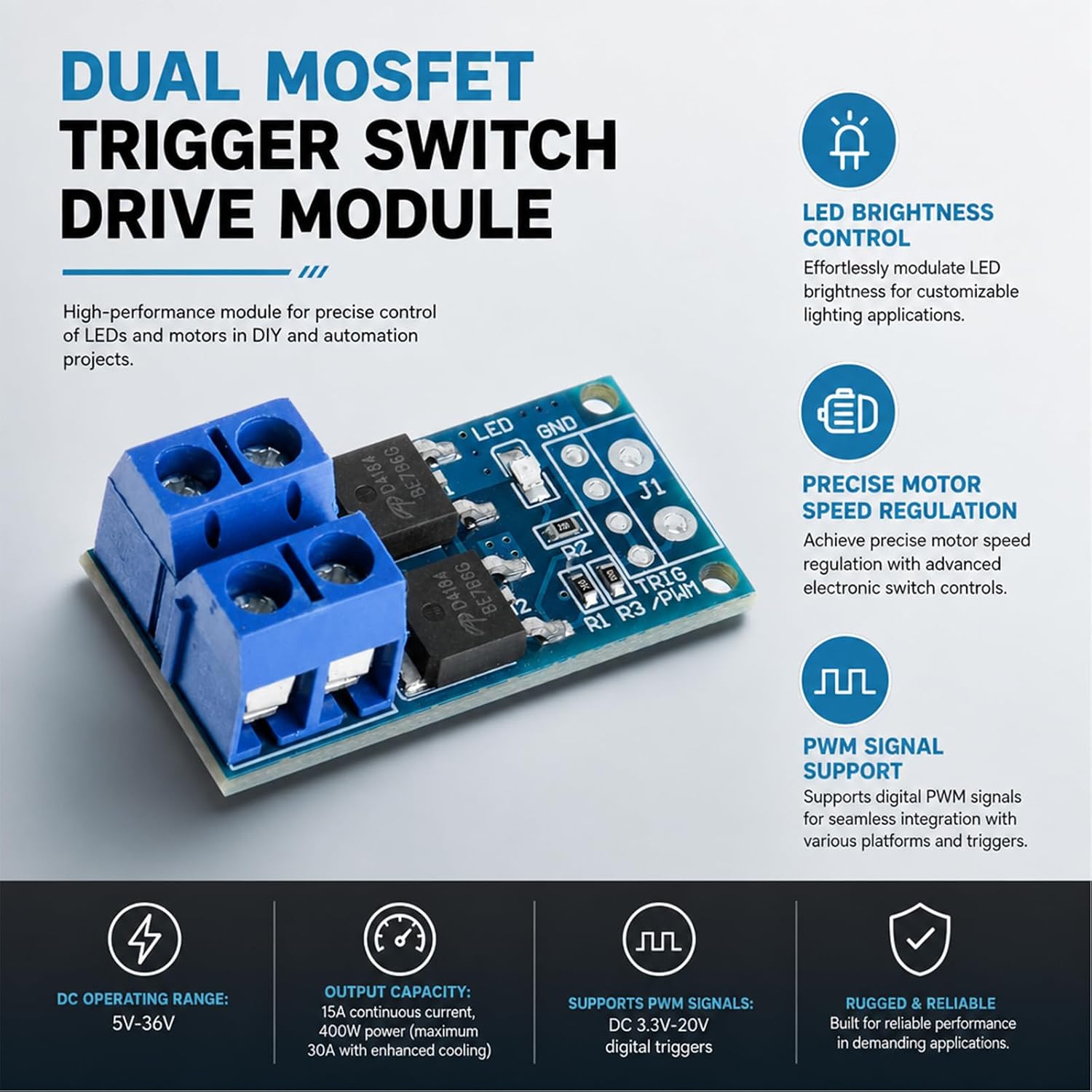

- [PACKAGE CONTENTS & SPECIFICATIONS]: This SKU includes 10 complete sets. Each set contains 1 x Dual MOS FET Trigger Switch Drive Module (Total package: 10 Modules). Specifications per module: Operating Voltage: DC 5V-36V; Trigger source: digital high-low (DC 3.3V-20V); Continuous current: 15A (Max 30A with cooling); Power: 400W; Dimensions: 34x17x12mm.
- [DUAL ACTIVE OUTPUT & HIGH POWER]: Adopts double parallel field-effect tubes for lower internal resistance, handling greater electric currents up to 15A at room temperature. Effectively drives 400W power equipment without requiring a mechanical relay.
- [VERSATILE SIGNAL SUPPORT]: Compatible with microcontroller IO ports, PLC interfaces, and direct DC power. Flawlessly processes PWM signals with frequencies ranging from 0 to 20kHz, providing accurate duty cycle adjustments for connected devices.

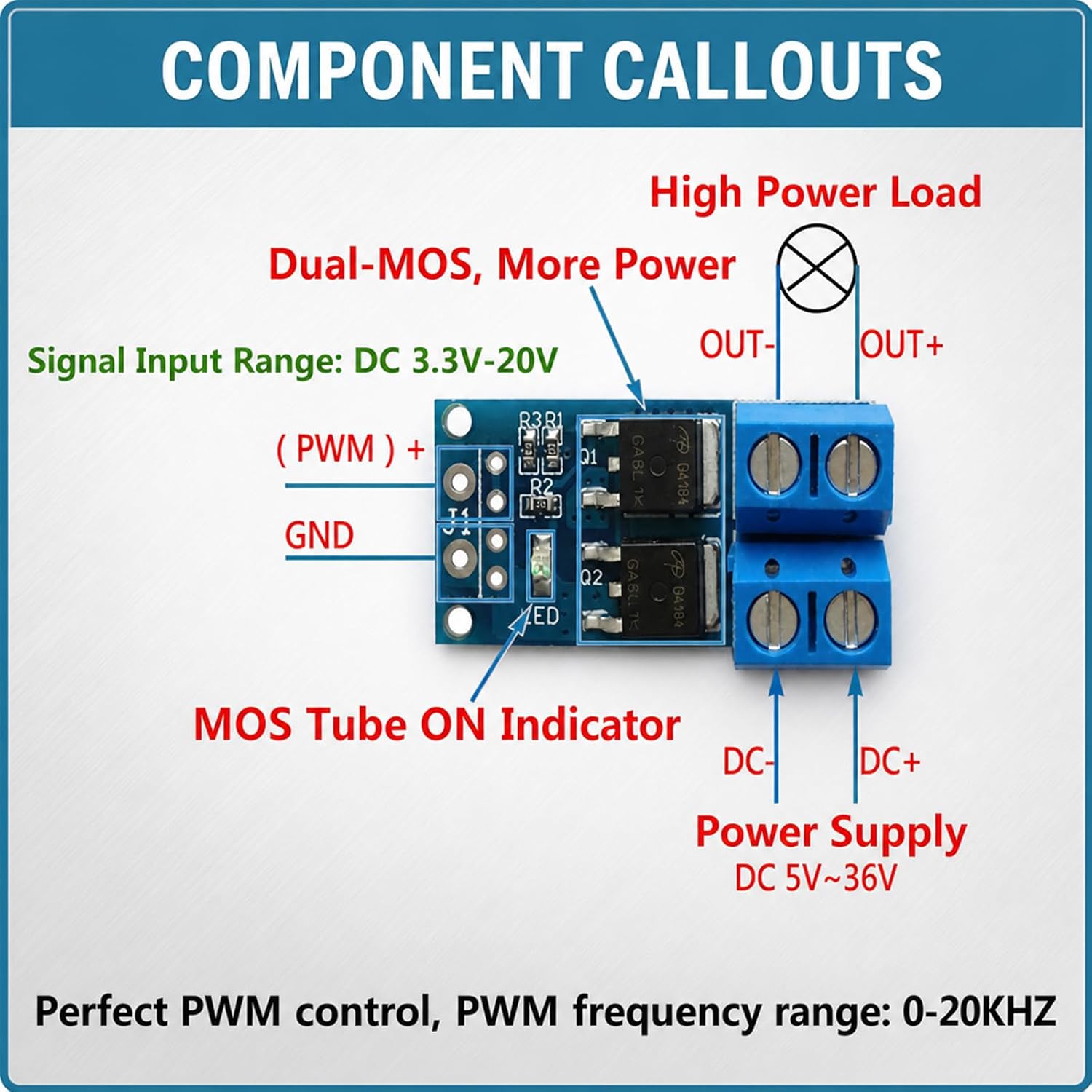

- [SETUP & WIRING INSTRUCTIONS]: Connect your power source to the input terminals and the load to the output terminals. Apply a 3.3V to 20V trigger signal to the control pins. Note: A logic level shifter is recommended for 3.3V microcontrollers to ensure reliable triggering, and use a flyback diode for inductive loads like coils.
- [APPLICATION SCENARIOS]: Ideal for DIY electronics and automation projects. Commonly used to manage LED strip brightness, regulate DC water pumps, operate solenoids, and control fan speeds in custom enclosures. Suitable for standard resistive and motor loads.
| UPC | 766717977386 |
|---|---|
| ASIN | B0GX9591Q7 |
| Color | black |
| Model | H5-HBB0469 |
| Brand Name | SUUOO |
| Part Number | H5-HBB0469 |
| Manufacturer | SUUOO |
| Number of Items | 10 |
| Included Components | The product itself |
| Warranty Description | SUUOO |
